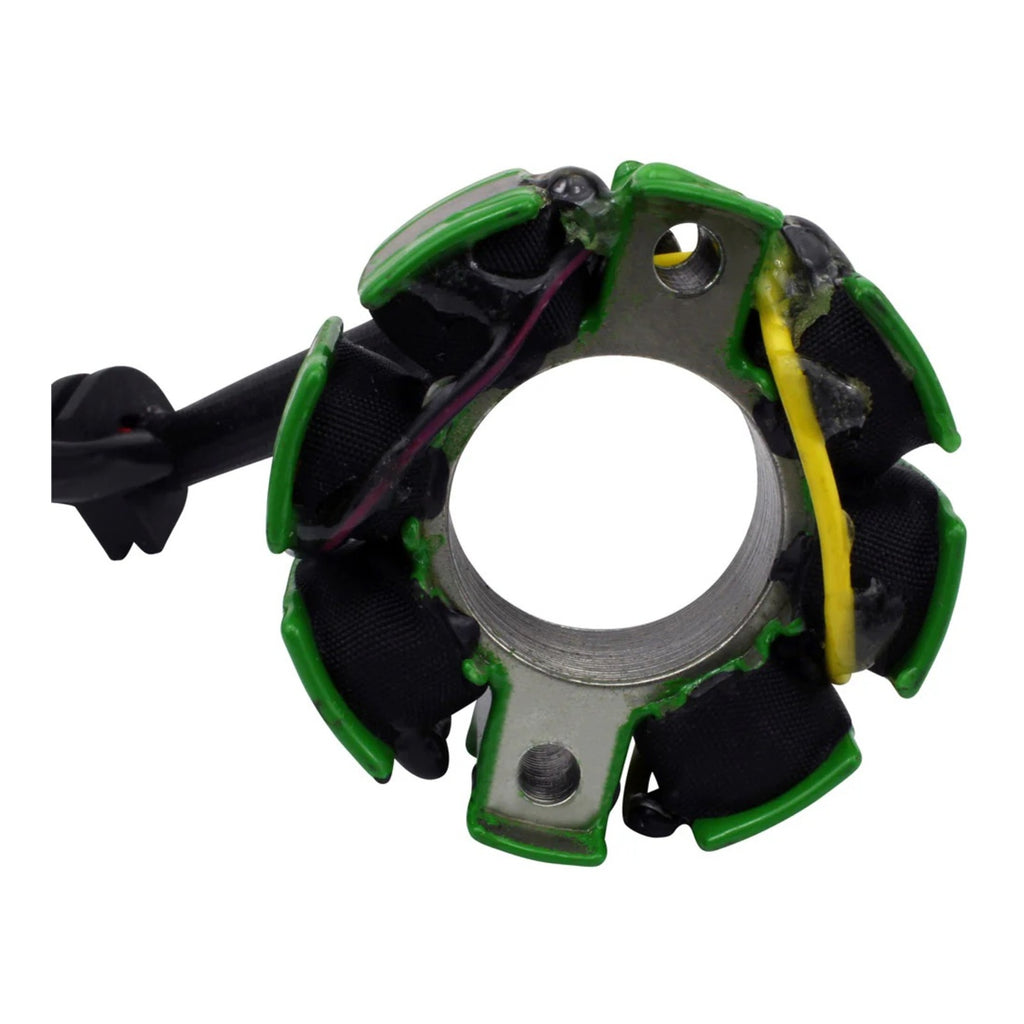

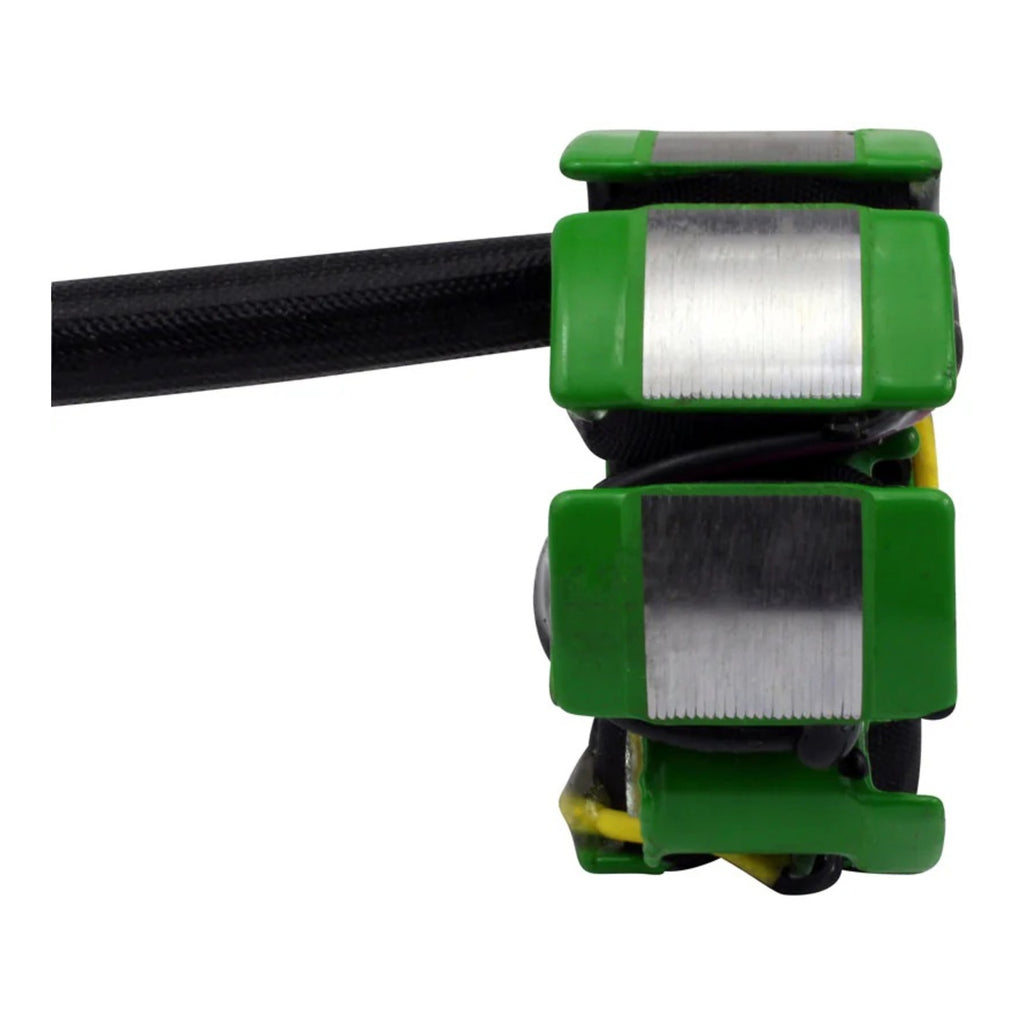

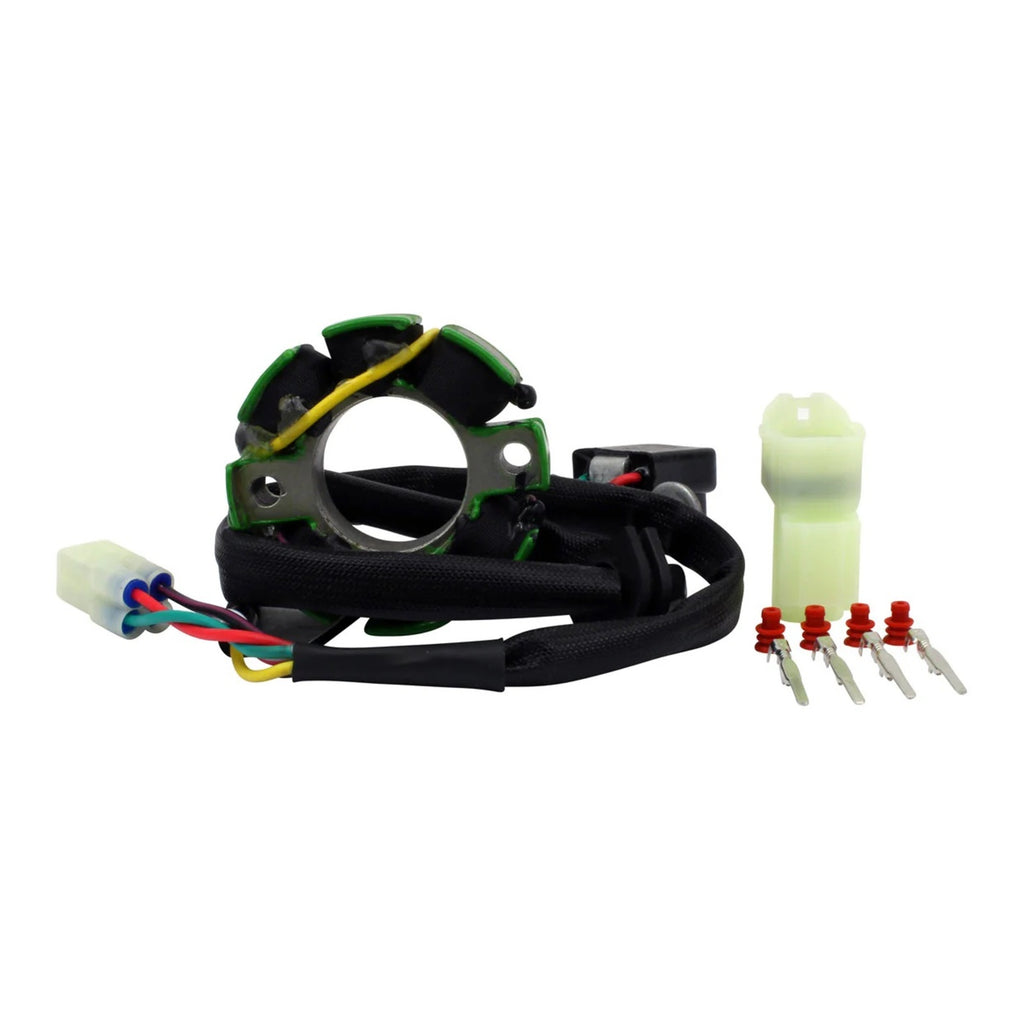

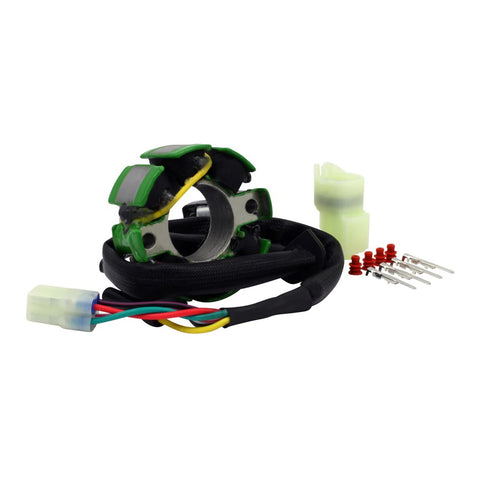

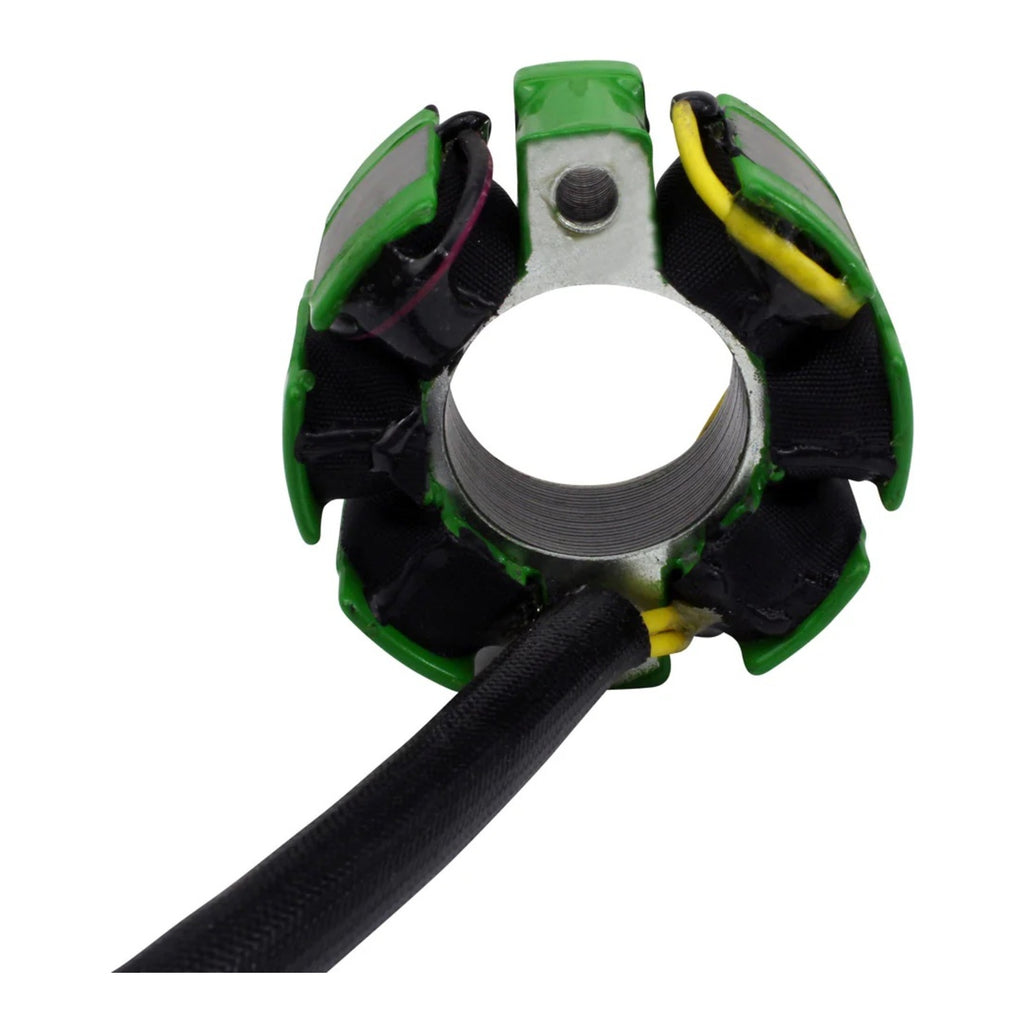

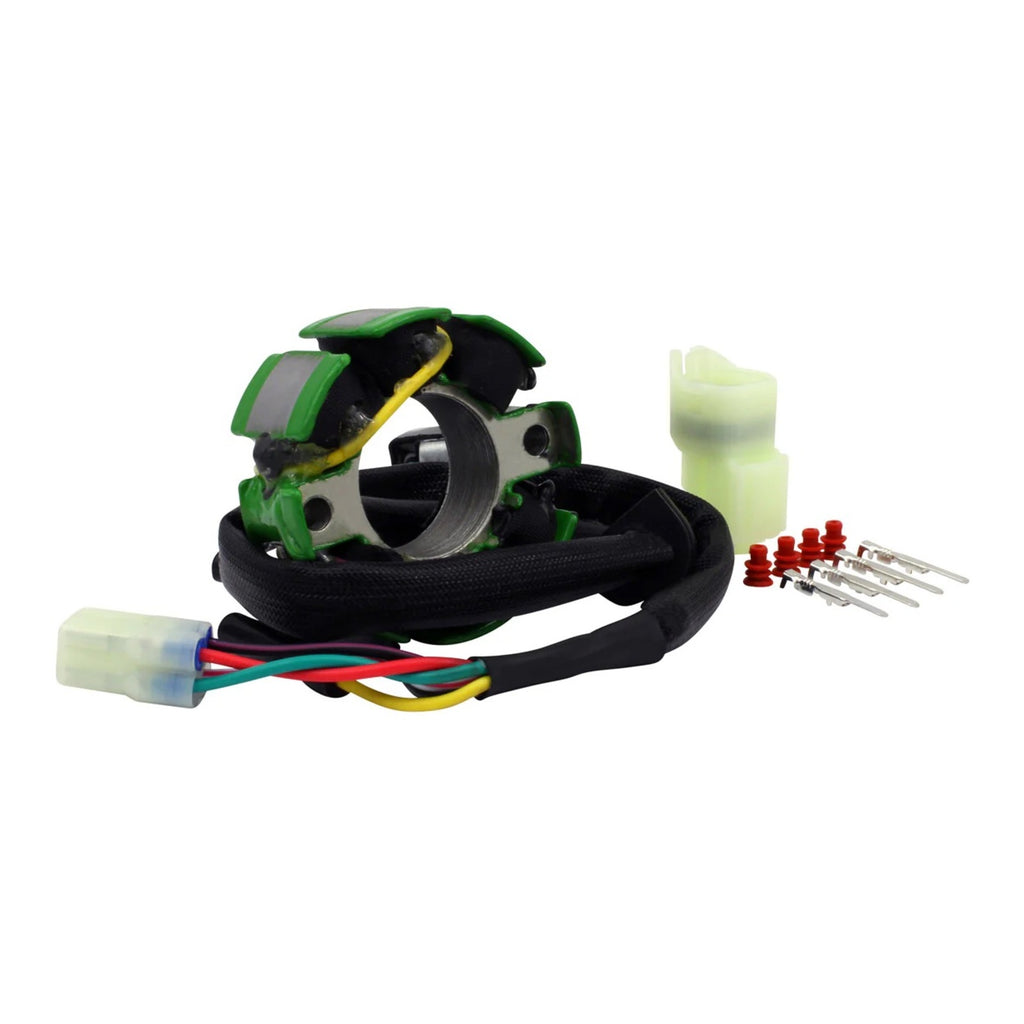

Brand new aftermarket lighting stator.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

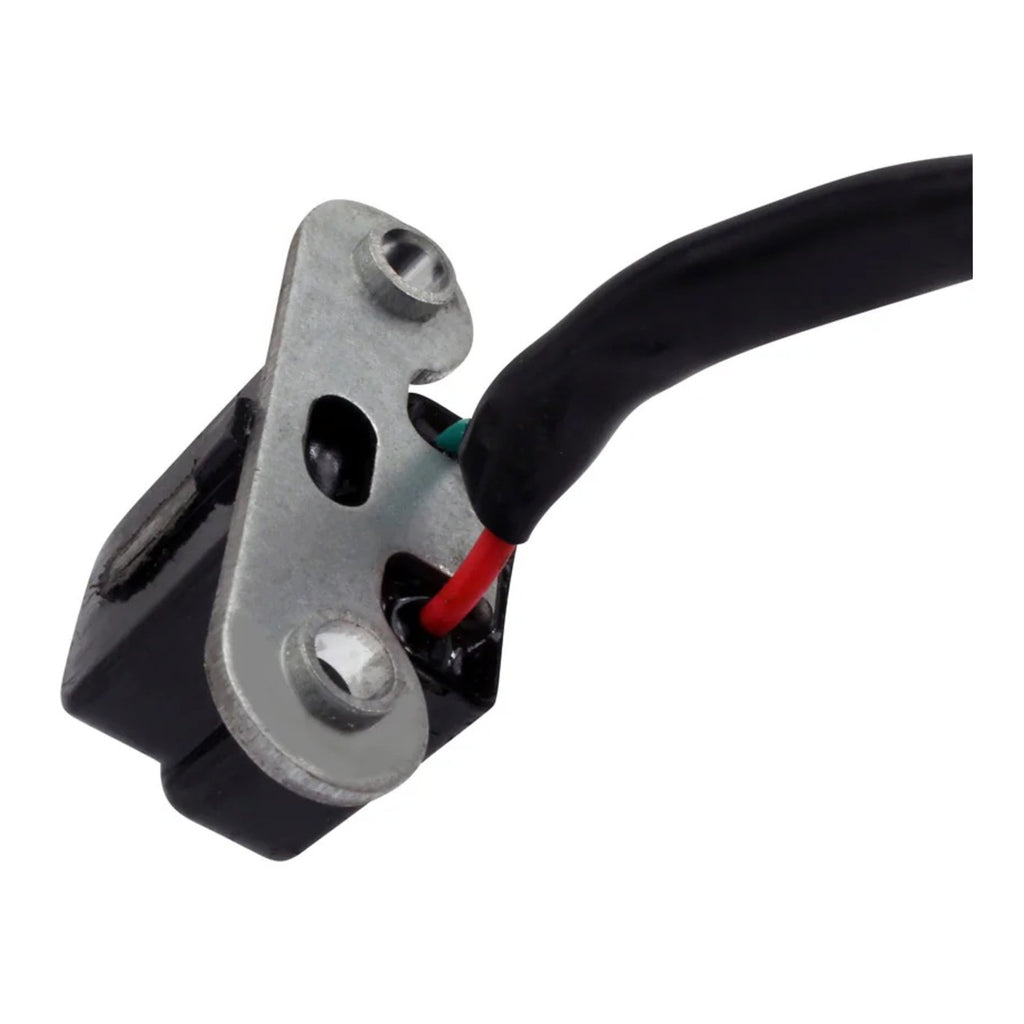

- Pick up pulsar coil included

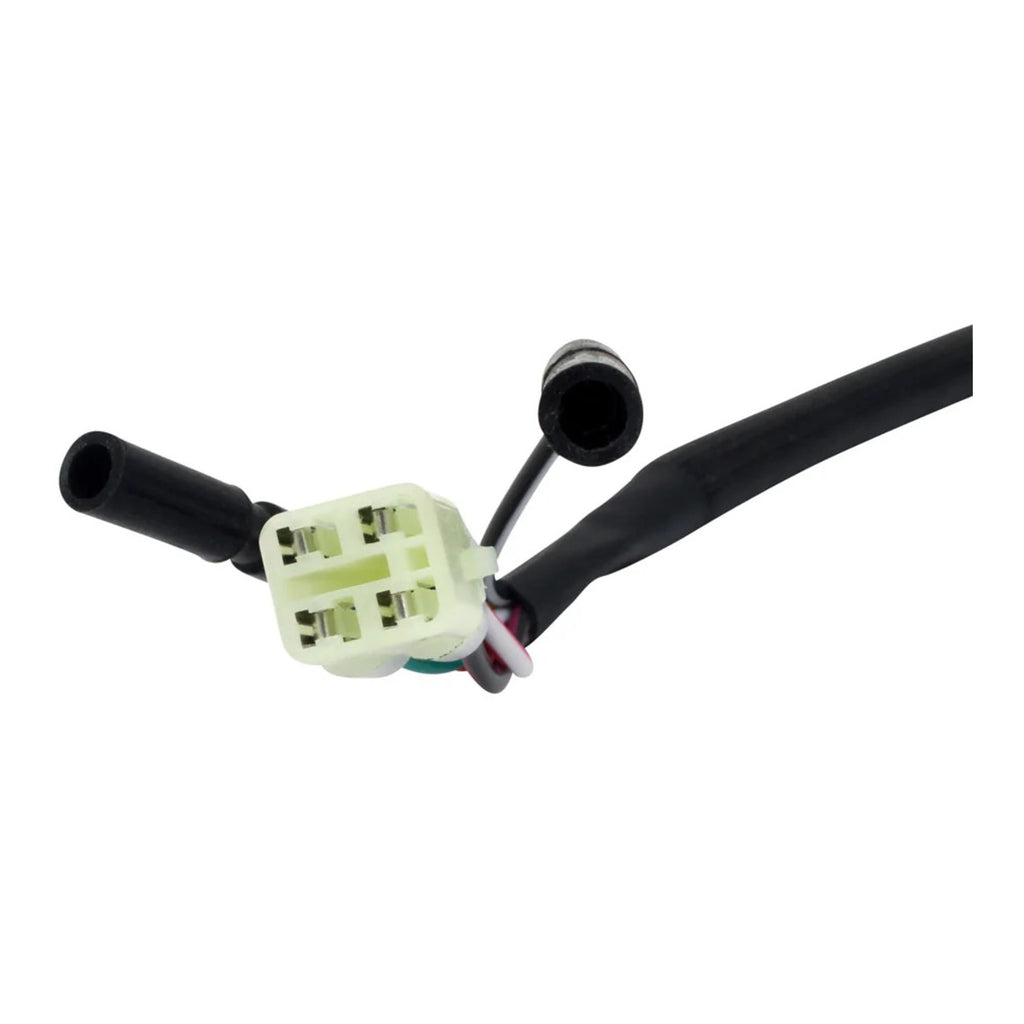

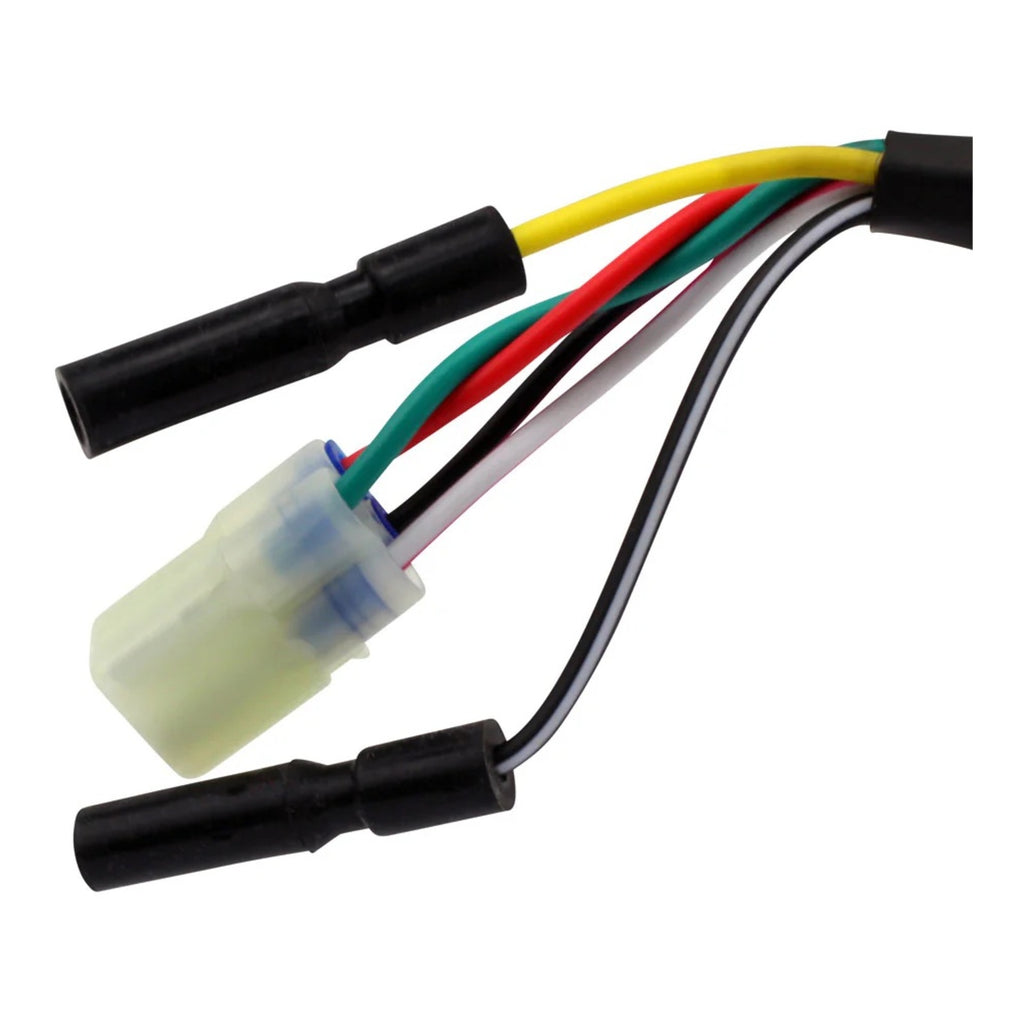

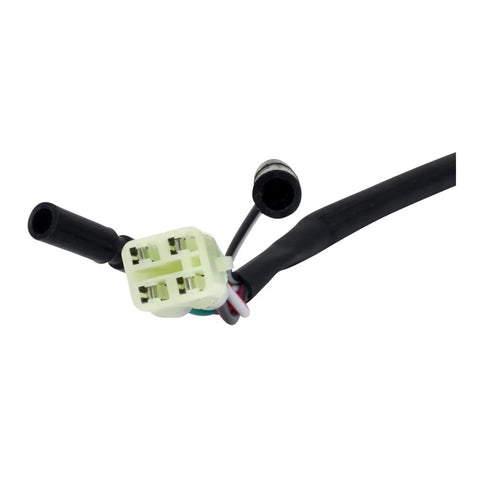

- Connectors included

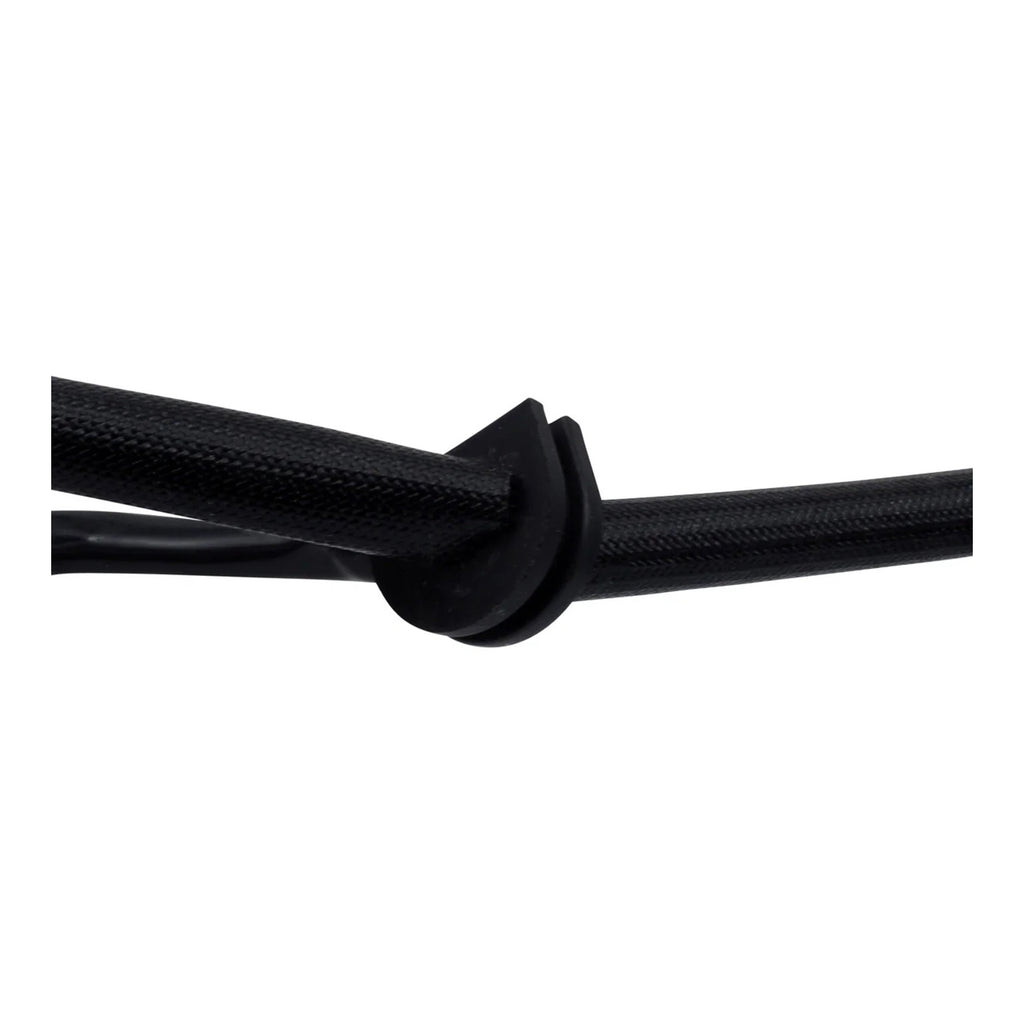

- Rubber grommet included
- All products shipped are tested

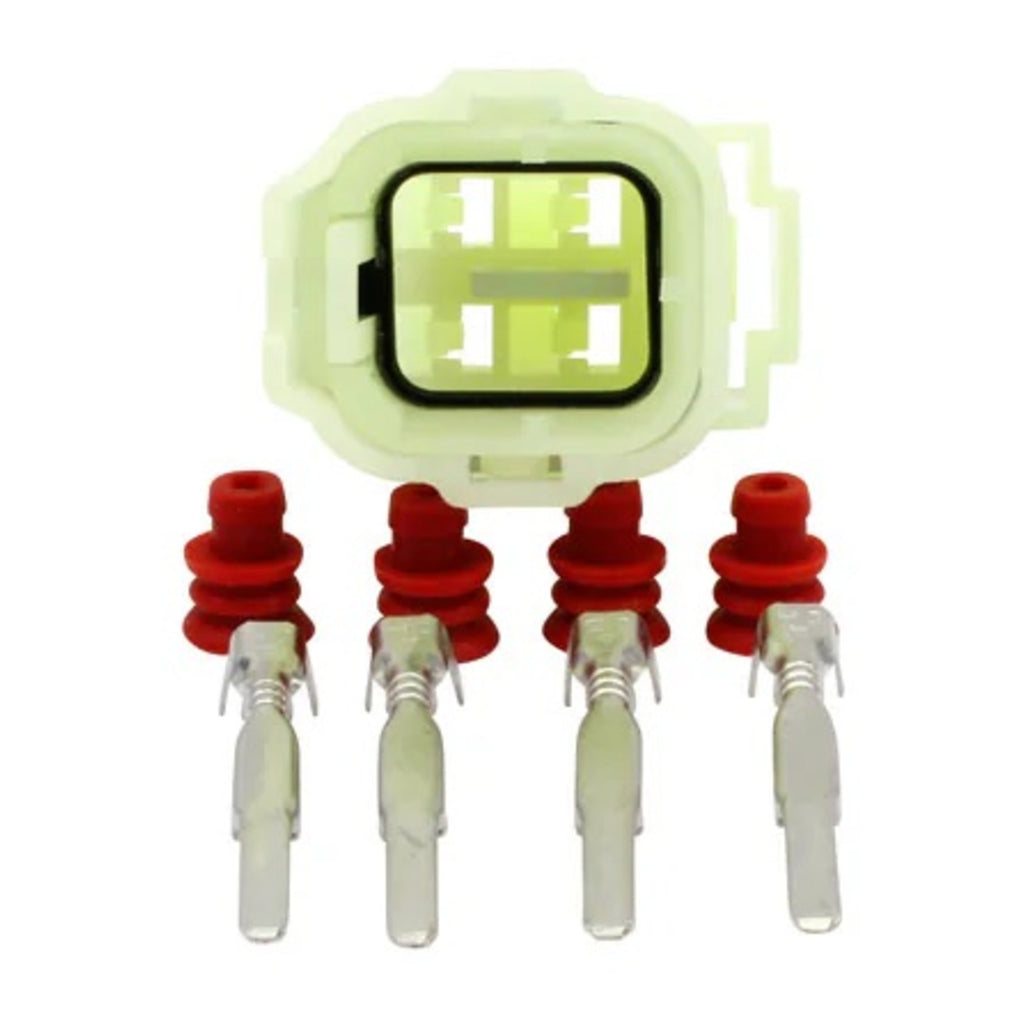

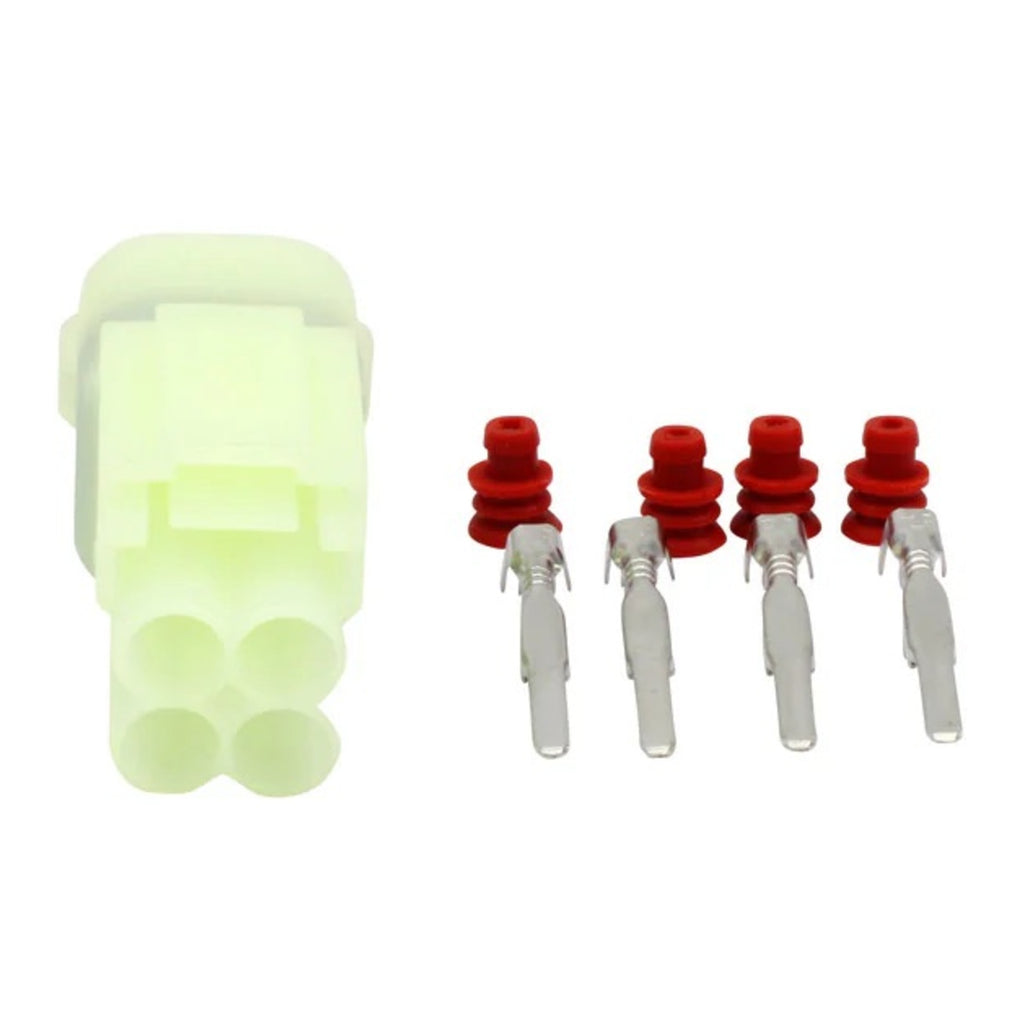

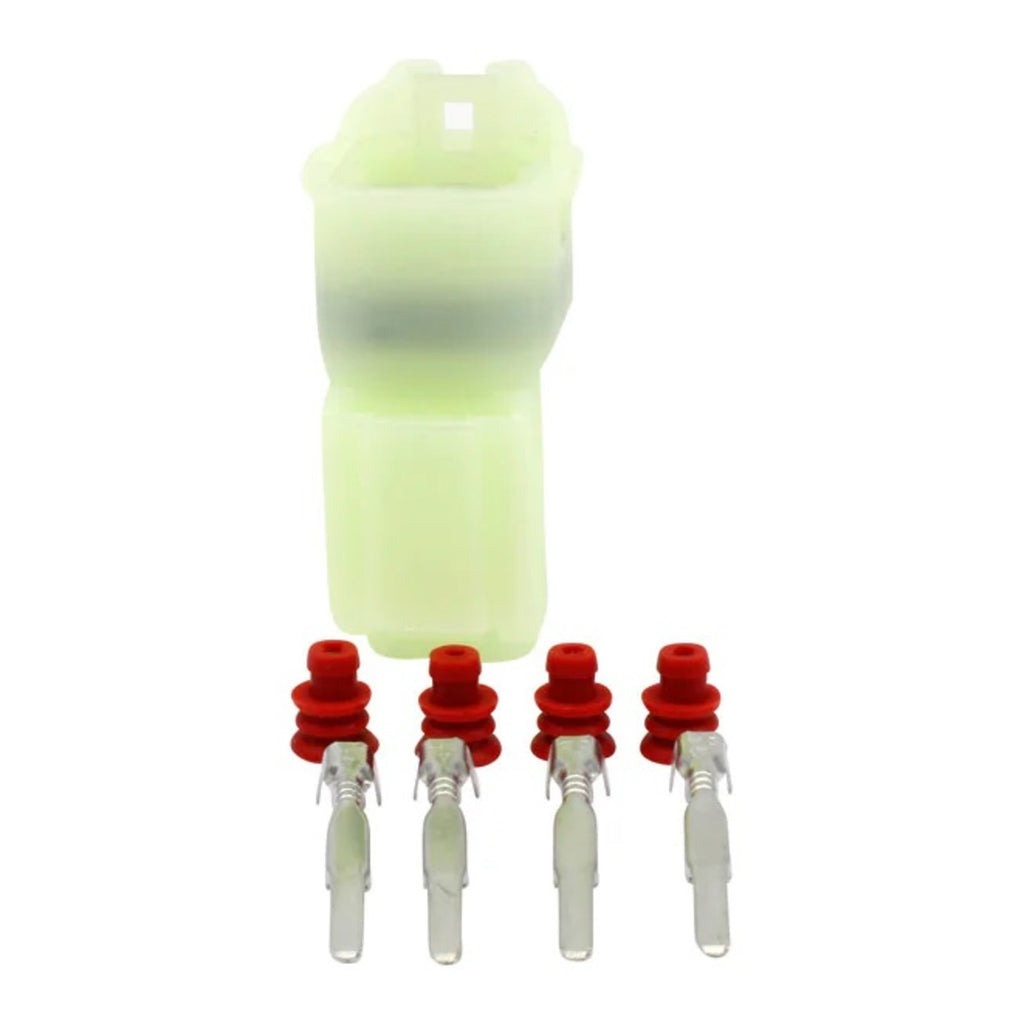

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new lighting stator:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
The stator might have a different wire colThe code than the original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Interior diameter: 28 mm
- Exterior diameter: 59 mm
- Thickness: 16 mm
- Length of wires stator to grommet: 100 mm
- Length of wires grommet to plug: 400 mm
- Length of pickup coil's wire to grommet: 60 mm
Other specifications:
- Number of wires: 4
- Number of plugs: 1
- Number of pins: 4
- Number of poles: 6
- Wire to wire resistance:
- Pickup: Red to Green = 100 ohms +/-20%
- Source: Black/Red to Red/White = 35 ohms +/-20%
